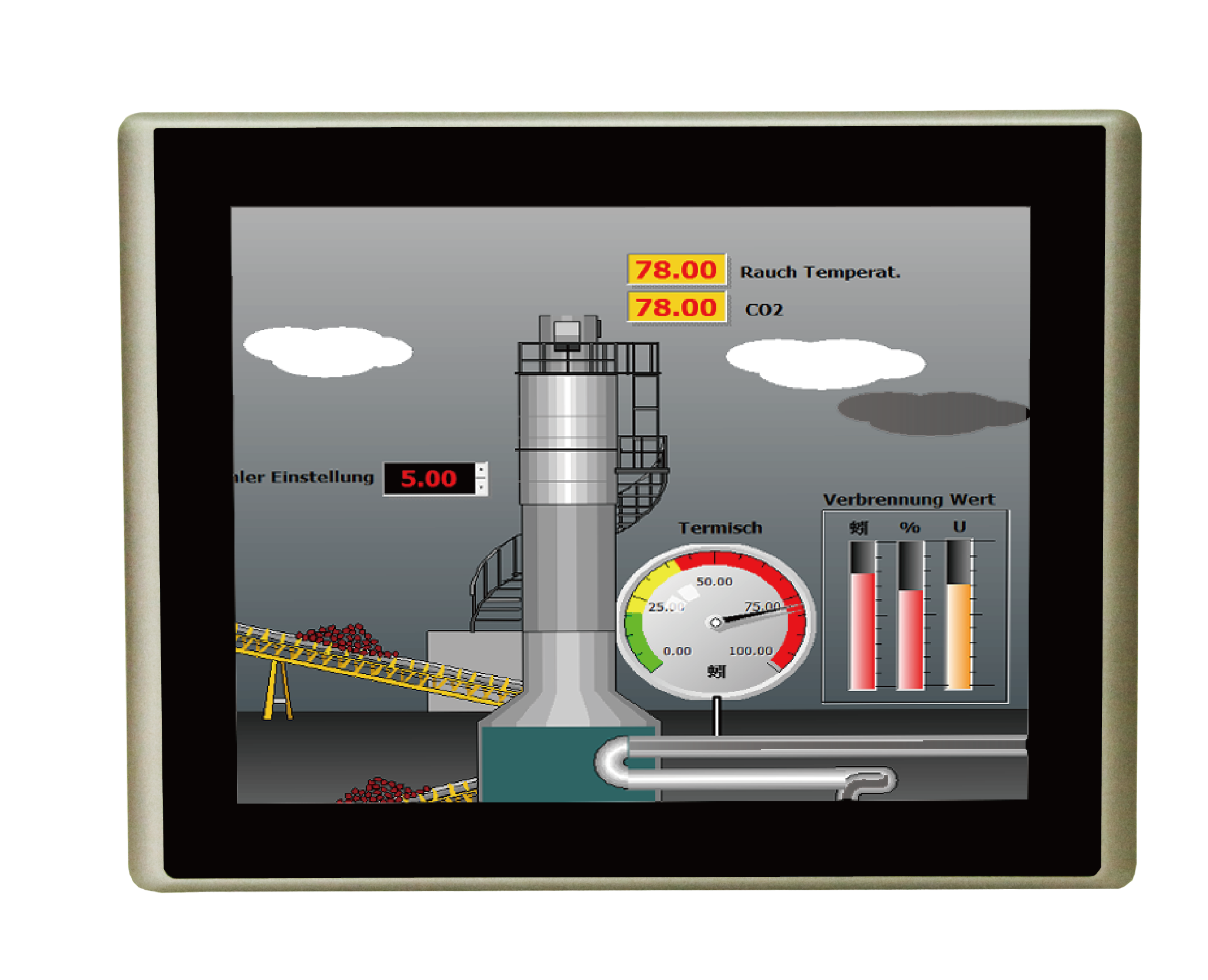

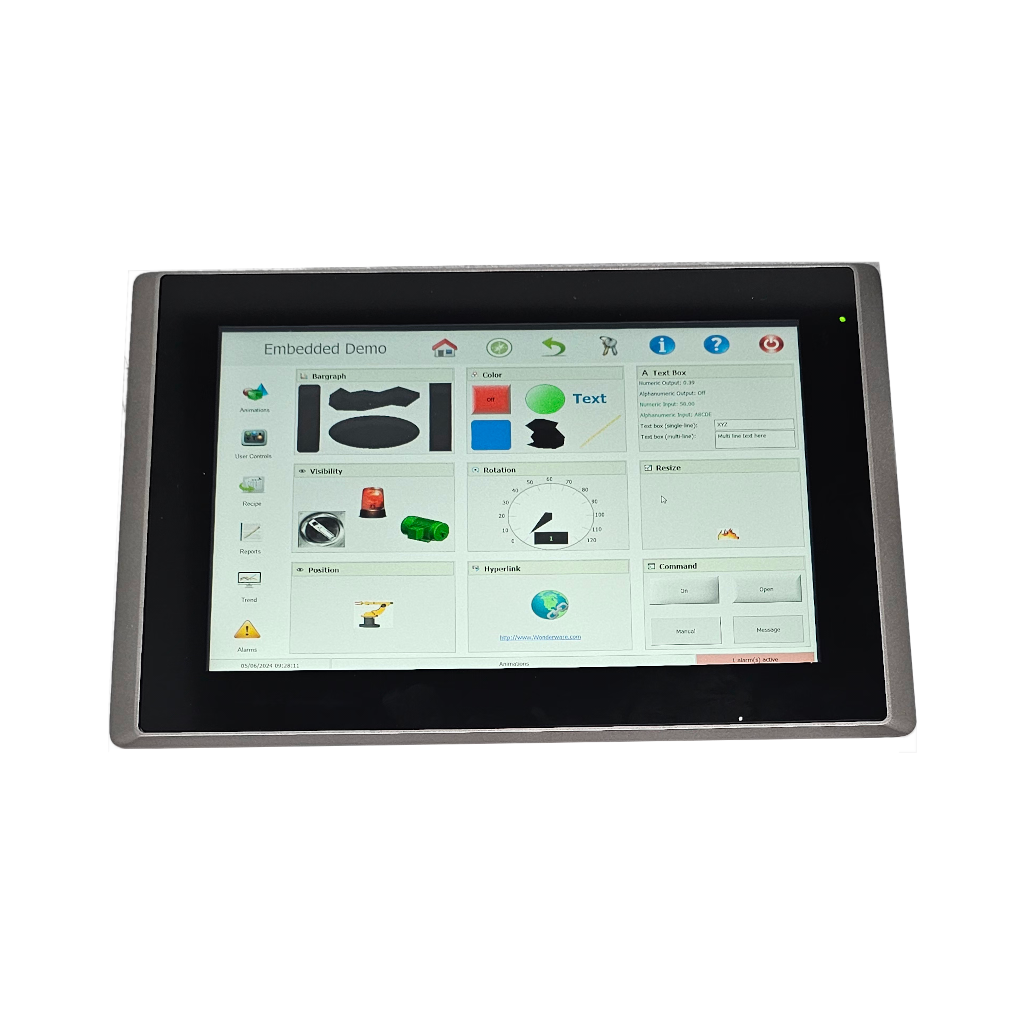

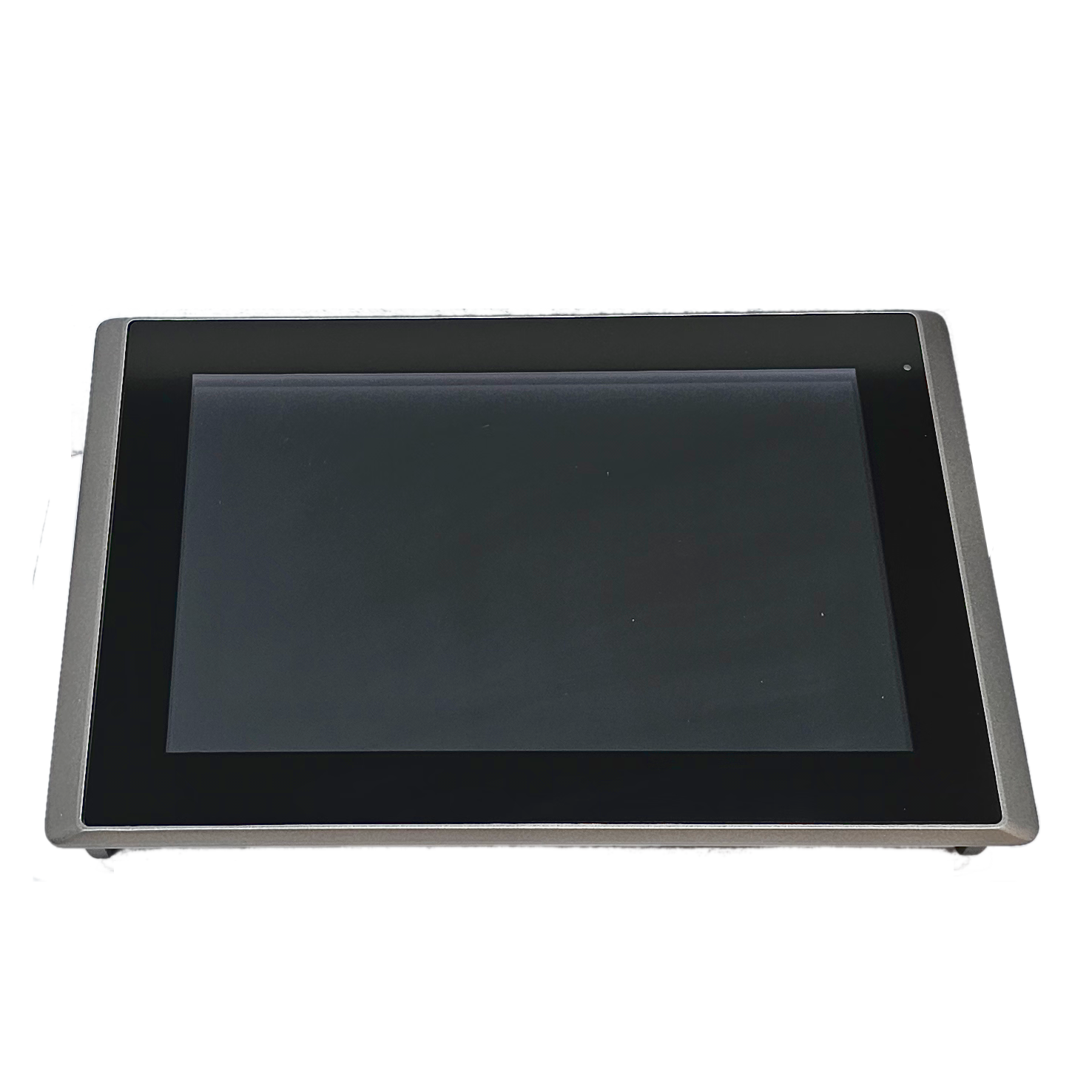

All SoftPLC SSH-CX HMI’s are industrial Panel-PC touchscreen systems with an embedded runtime license pre-loaded. Common features include:

  • Rugged, Windows10 IOT Panel-PC based HMI
  • Powerful, feature-rich Web Studio operator interface software
  • Ethernet, serial and USB ports for connectivity to hundreds of PLC’s and other equipment
  • Fanless design
Ordering Information
  • Specify the desired Screen Size
  • Specify the Tag Size, the maximum allowed number of tags – LT=150, LP=300, 15=1500, 4K=4000
  • Select whether the license Brand is SoftPLC Web Studio or Aveva Edge
Pre-Installed Software:
  • Windows 10 IoT Enterprise LTSC Entry O/S
  • SoftPLC HMI runtime license (softkey)
  • Resistive Touchscreen
  • 32GB SSD
  • 4 GB DDR3L RAM
  • Intel Celeron N2930 (1.83GHz) Quad Core CPU
  • (2) GB RJ-45 Ethernet, (2) DB9 serial ports, (2) USB 3.0 type A

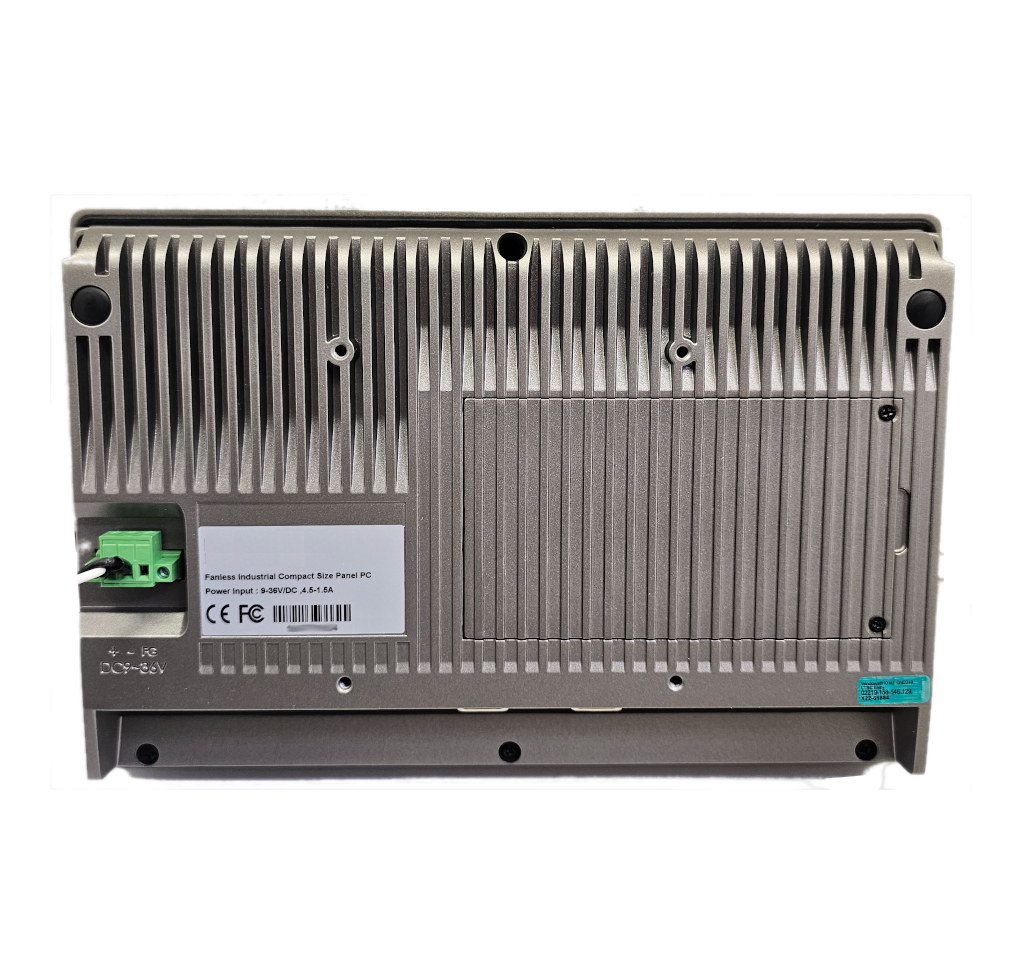

  • 9~36VDC Power Input, 3 pin terminal block
  • IP66 Front Panel



Options:  Your selections are appended to the part number (SKU), separated by dashes in the order listed below (if applicable).

Screen Size: 7, 10, 12, 15, 17, 19, 21
Tag Size: LT, LP, 15, 4K
Brand: SoftPLC Web Studio, Aveva Edge
Weight: 8 lbs
Dimensions: 13 × 14 × 7 in


HMI, Win10 IoT O/S

Product Specifications Data Sheet | More info…


Selecting a Brand

Brand is a selection that determines whether the software license is for SoftPLC Web Studio or Aveva Edge.  The software used to develop an application MUST match the runtime or license in the HMI.

This selection determines:

  1. Whether your technical support is through SoftPLC Corp. or Aveva
  2. Web Studio is version 20, Edge is currently version 23.
