Using an automated utility, SoftPLC Corp. engineers can convert ladder logic and documentation files exported from your Allen-Bradley PLC programming software to SoftPLC compatible format. Most programs convert 95% or better.

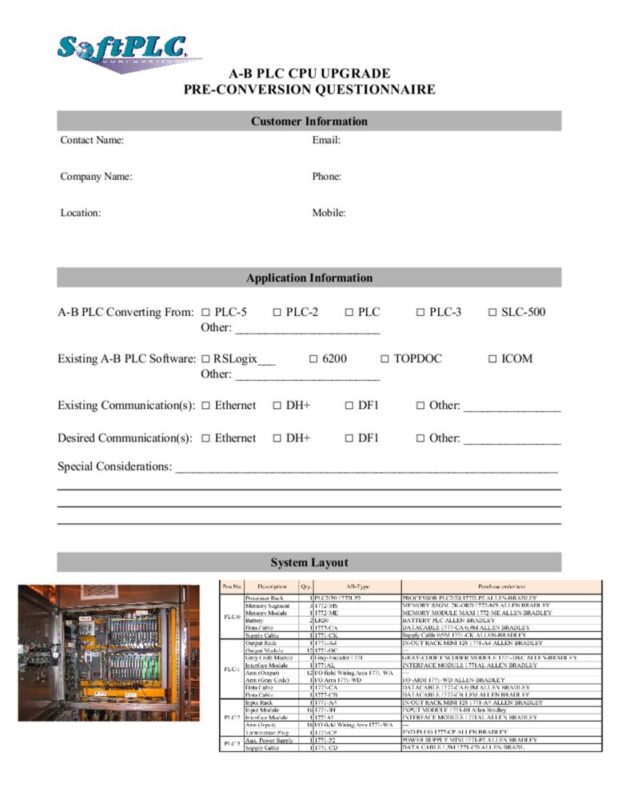

An application engineer will contact you to discuss the required files our conversion utility needs for your specific PLC and programming software.

This service is for a “raw” conversion, which means that the file formats will be converted so that they load into TOPDOC NexGen without errors. However, our engineers do not have detailed information about the machine or process, and there may be slight differences in the SoftPLC versus the old A-B PLC (eg: scan times, communication rates, etc.). Someone familiar with the equipment and its operation must review the system and do a start-up test as part of the conversion process.


Options:  Your selections are appended to the part number (SKU), separated by dashes in the order listed below (if applicable).

A-B PLC Model: PLC-2/1774 PLC, PLC-5, SLC-500, MicroLogix
  • A-B PLC Upgrade Incentive OfferFree programming/configuration software with your company’s first purchase of a SoftPLC PAC or Gateway! Simply add TOPDOC NexGen to your cart, and use coupon code “FreeTDNG” at checkout.
  • With your 1st purchase of TOPDOC PLC-2, PLC-5 or PLC-3, receive a $1000 discount on a new Smart or NeoPAC SoftPLC controller or Gateway.  Simply add your selected Smart/NeoPAC to your cart, and use coupon code “ABPLCUpgrade” at checkout.  (Free TOPDOC NexGen offer above also applies!)



TdxZ-TR: A-B PLC Conversion Service

A-B PLC Program/Documentation Conversion

Product Specifications Data Sheet | More info…
