SLC-500 Migration Kits are a value-priced, low downtime option for replacing obsolete Rockwell Automation systems!

  • No re-wiring – continue to use existing SLC I/O

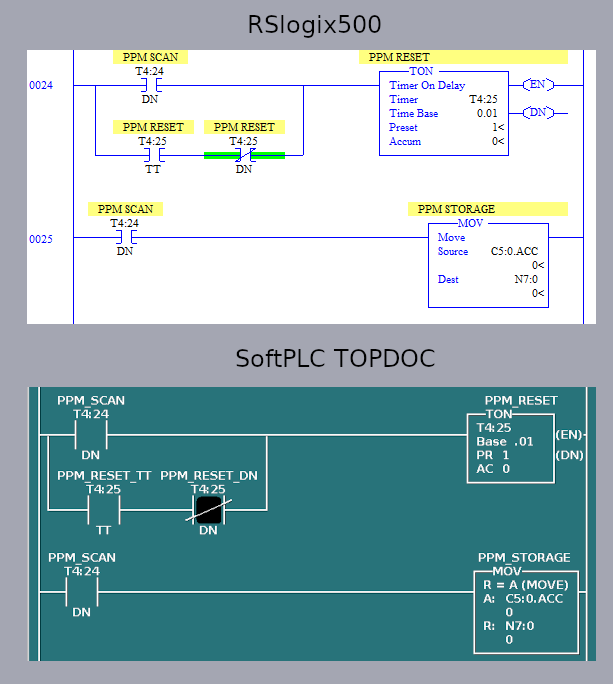

  • Little to no re-engineering, ladder logic and documentation automatically converts
  • Continue to use existing HMI and communication networks
  • Little to no re-training of personnel
  • Continue to use existing spare parts
  • Compatible with modern I/O, HMI, networks for future migrations

What’s Included in this SLC-500 Migration Kit:

How to Order this SLC-500 Migration Kit:

NeoPAC SoftPLC’s use TOPDOC NexGen software for configuration and troubleshooting. A free TOPDOC NexGen license is included with your first SoftPLC purchase, see the Offers Tab.

  • Specify the NeoPAC I/O and/or communication capacity using RT Size (“RT Size” button describes the options).
  • The NeoPAC supports 2 factory configured Option Ports.  One is pre-configured for A-B Remote I/O (RIO).  You can add a 2nd port for Data Highway Plus (DH+) or RIO, or for RS-485 communications (eg: for Modbus or ASCII)

Other factory options for the NeoPAC are available such as WiFi, embedded web server, email, and more. To configure a NeoPAC with other options, order the kit contents as separate items (links above).

SKU: SNS2-SMKIT

Options:  Where applicable, your selections are appended to the base catalog number to generate the specific SKU.  The option selection codes are separated in the SKU by dashes in the option order listed below.

RT Size: LT, 1K, 2K
NeoPAC Option Ports: BH-None, BH-485, BH-BH
Weight: 4 lbs
Dimensions: 8 × 6 × 5 in
  • A-B PLC Upgrade Incentive OfferFree programming/configuration software with your company’s first purchase of a SoftPLC PAC or Gateway! Simply add TOPDOC NexGen to your cart, and use coupon code “FreeTDNG” at checkout.
  • With your 1st purchase of TOPDOC PLC-2, PLC-5 or PLC-3, receive a $1000 discount on a new Smart or NeoPAC SoftPLC controller or Gateway.  Simply add your selected Smart/NeoPAC to your cart, and use coupon code “ABPLCUpgrade” at checkout.  (Free TOPDOC NexGen offer above also applies!)





SLC-500 CPU Migration Kit (Keep existing SLC I/O), NeoPAC

Upgrade your obsolete SLC-500 CPU with our cost-effective SLC-500 Migration Kit. No rewiring is needed & you can continue using existing logic, HMI, and networks.

SNS2-SMKIT-x

$2,800.00$5,150.00

About RT Size

RT Size is a SoftPLC license setting that determines communication driver maximums.  RT Size only applies if you are using:

  • ModbusTCP Master:  # of Server Connections
  • Ethernet/IP:  # of Connection Bytes
  • A-B DH+/RIO:  # of Logical Racks
  • Tealware Local I/O: # of Discrete I/O (largest of 2 values)
Which RT Size should I choose?

Select Lite (LT) if you are not using the protocols above. Use the table below to determine the RT Size needed for your application.

RT Size MBTCP Enet/IP  A-B Racks I/O
LT 2 64  1 128
1K 16 512  8 1024
2K 32 1024 16 2048
8K 127 4096 64 8192
