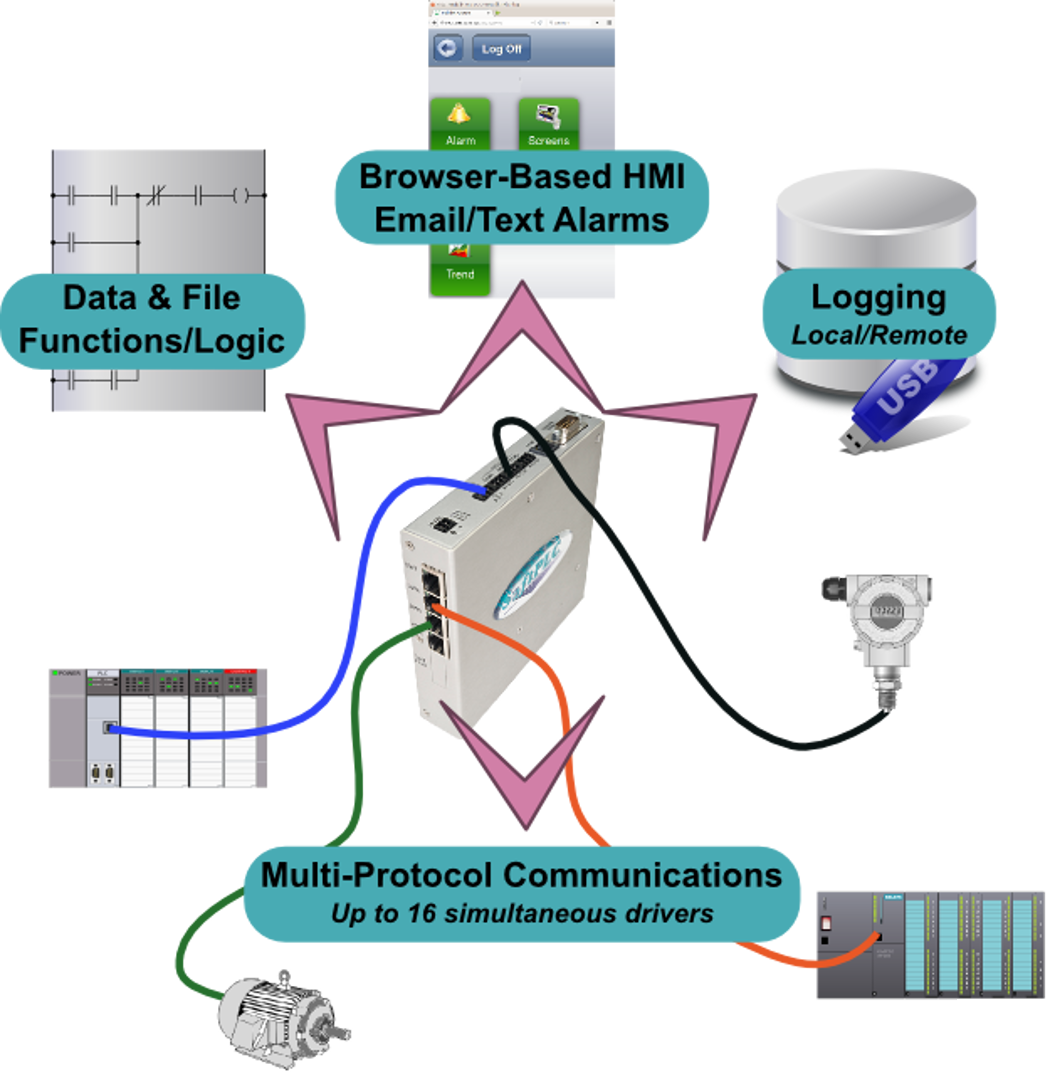

A complete solution for industrial data communication and management! Smart SoftPLC Gateways are powerful and flexible communication protocol converters, bridges, and data concentrators.

Specifications:
  • (4) GB port Ethernet switch plus (1) GB Ethernet port, user-configurable protocols
  • (1) RS-485 port (user configurable for Modbus or ASCII)
  • (3) optional factory installed communication ports for RS-485 or A-B “blue-hose” port (user configurable for DH+, A-B RIO Scanner, A-B RIO Adapter)
  • (2) USB 2.0 ports (user configurable for DF1, Modbus, ASCII)
  • Up to 100M words data registers
Ordering Information:

Smart SoftPLC Gateways use TOPDOC NexGen software for configuration and troubleshooting. A free TOPDOC NexGen license is included with your first SoftPLC purchase, see the Offers Tab.

  • Specify the communication capacity using RT Size (RT Size button describes the options).
  • There are 3 factory configured Option Ports.  You can select any mix of DH+/RIO or RS-485 ports.
  • You can also select Extended Temperature operation in the Hardware Options.

This assembly is base functionality. Other options are available such as WiFi, email, and more. To configure a Smart SoftPLC with other options, select model SMS4.

SKU: SMG4

Options:  Your selections are appended to the part number (SKU), separated by dashes in the order listed below (if applicable).

RT Size: LT, 1K, 2K, 8K
Smart Option Ports: None, BH-None-None, BH-BH-None, BH-BH-BH, BH-485-None, BH-BH-485, BH-485-485, 485-None-None, 485-485-None, 485-485-485
Hardware Options: No HW Options, Ext Temp
Weight: 4 lbs
Dimensions: 5 × 12 × 5 in
  • A-B PLC Upgrade Incentive OfferFree programming/configuration software with your company’s first purchase of a SoftPLC PAC or Gateway! Simply add TOPDOC NexGen to your cart, and use coupon code “FreeTDNG” at checkout.
  • With your 1st purchase of TOPDOC PLC-2, PLC-5 or PLC-3, receive a $1000 discount on a new Smart or NeoPAC SoftPLC controller or Gateway.  Simply add your selected Smart/NeoPAC to your cart, and use coupon code “ABPLCUpgrade” at checkout.  (Free TOPDOC NexGen offer above also applies!)





SMG4: Smart SoftPLC Gateway

Smart SoftPLC Gateway

Product Specifications Data Sheet | More info…

$1,600.00$7,300.00

About RT Size

RT Size is a SoftPLC license setting that determines communication driver maximums.  RT Size only applies if you are using:

  • ModbusTCP Master:  # of Server Connections
  • Ethernet/IP:  # of Connection Bytes
  • A-B DH+/RIO:  # of Logical Racks
  • Tealware Local I/O: # of Discrete I/O (largest of 2 values)
Which RT Size should I choose?

Select Lite (LT) if you are not using the protocols above. Use the table below to determine the RT Size needed for your application.

RT Size MBTCP Enet/IP  A-B Racks I/O
LT 2 64  1 128
1K 16 512  8 1024
2K 32 1024 16 2048
8K 127 4096 64 8192
