SoftPLC’s Drive Gateways provide protocol conversion between Allen-Bradley Remote I/O (RIO) “blue-hose” networks and VFD’s that reside on Ethernet/IP, ModbusTCP, DF1, Modbus RTU, and other networks.  RIO Drive Gateways are ideal when updating a drive, but not the A-B PLC.

The SNG2-DS is a SoftPLC NeoPAC Gateway with specialized firmware that provides a web-browser based configuration to replace one A-B RIO drive with one Siemens Ethernet/IP Drive.  For multiple drives/gateway, specialized function support, etc. a NeoPAC or Smart RIO Gateway is recommended.

Siemens Drive RIO Gateway Specifications:

  • (1) GB Ethernet port for Ethernet/IP Scanner
  • (1) A-B “blue-hose” port for RIO Adapter

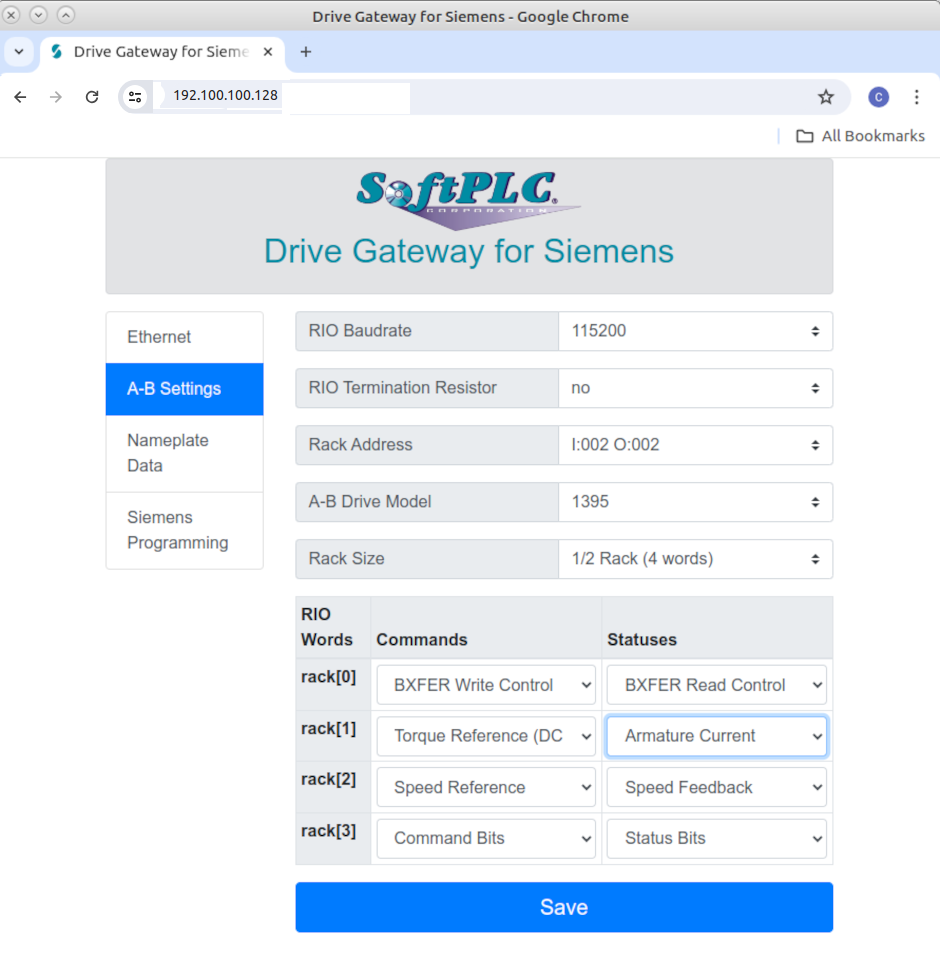

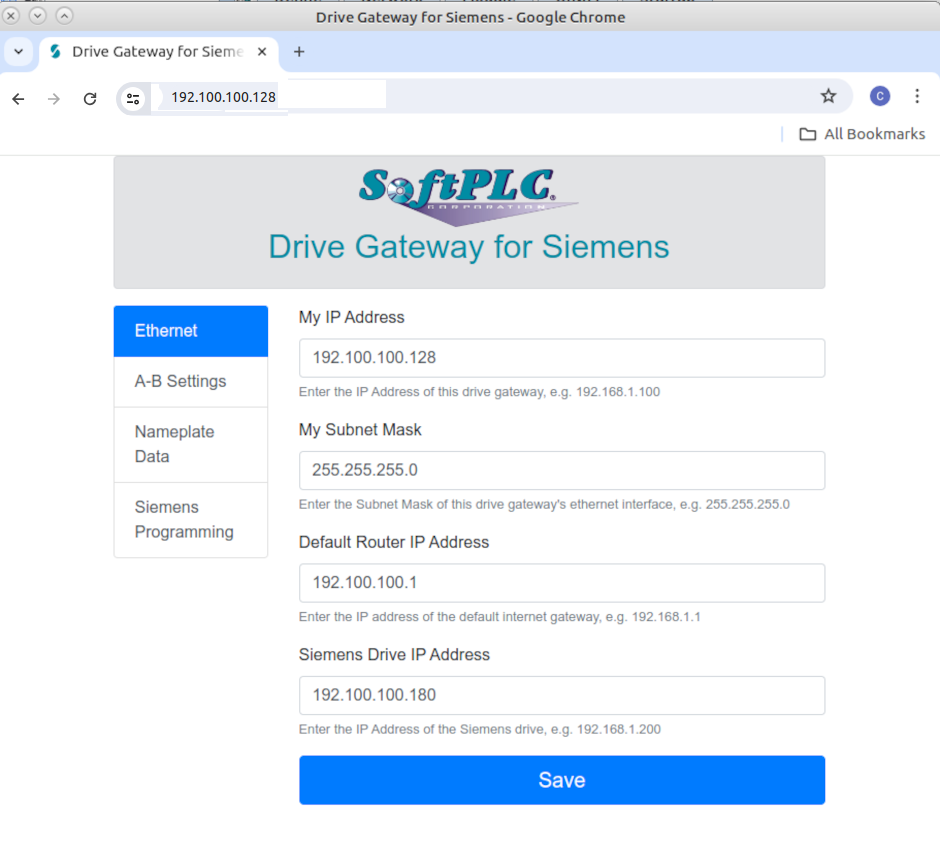

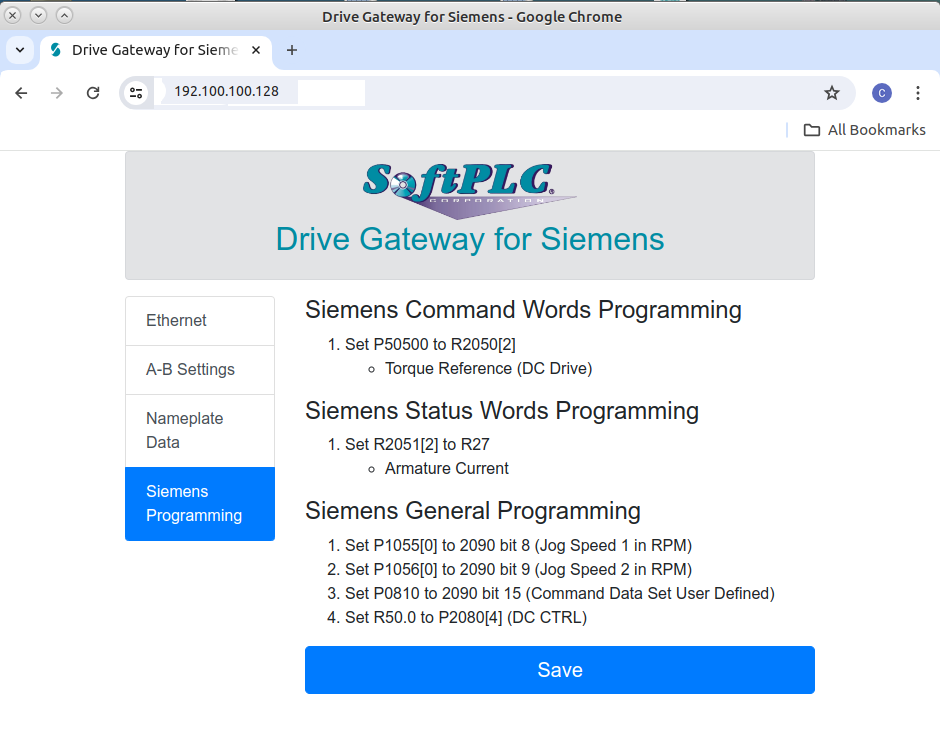

  • Embedded web-based configuration editor
  • 24V DC power
SKU: SNG2-DS-LT

Options:  Where applicable, your selections are appended to the base catalog number to generate the specific SKU.  The option selection codes are separated in the SKU by dashes in the option order listed below.

Hardware Options: No HW Options, Ext Temp
Weight: 2 lbs
Dimensions: 3 × 8 × 3 in
  • A-B PLC Upgrade Incentive OfferFree programming/configuration software with your company’s first purchase of a SoftPLC PAC or Gateway! Simply add TOPDOC NexGen to your cart, and use coupon code “FreeTDNG” at checkout.
  • With your 1st purchase of TOPDOC PLC-2, PLC-5 or PLC-3, receive a $1000 discount on a new Smart or NeoPAC SoftPLC controller or Gateway.  Simply add your selected Smart/NeoPAC to your cart, and use coupon code “ABPLCUpgrade” at checkout.  (Free TOPDOC NexGen offer above also applies!)





Siemens Drive RIO Gateway (NeoPAC)

Siemens RIO Drive Gateways provide an easily configurable interface between an Allen-Bradley PLC and Siemens Ethernet/IP VFD’s.  Ideal when updating a drive, but not the A-B PLC.

SNG2-DS-x

$1,500.00$1,650.00
